Model Numbers:
Dimensions:
Weight:
Model Numbers:
Dimensions:
Weight:
Model Numbers:
PM-97-TP-PS2: With PS/2 cable PM-97-TP-USB: With USB cable
Dimensions:
15.10" x 6.05" x 1.09" (w-h-d) 383.5mm x 153.7mm x 27.7mm
Weight:
1.50 lbs +/-0.10 lbs (0.68 kg +/-0.05kg)
100% Humidity Resistant
Fast Shipping
Custom Languages & Options Available - Contact Us
Questions? Contact Us or Get A Quote

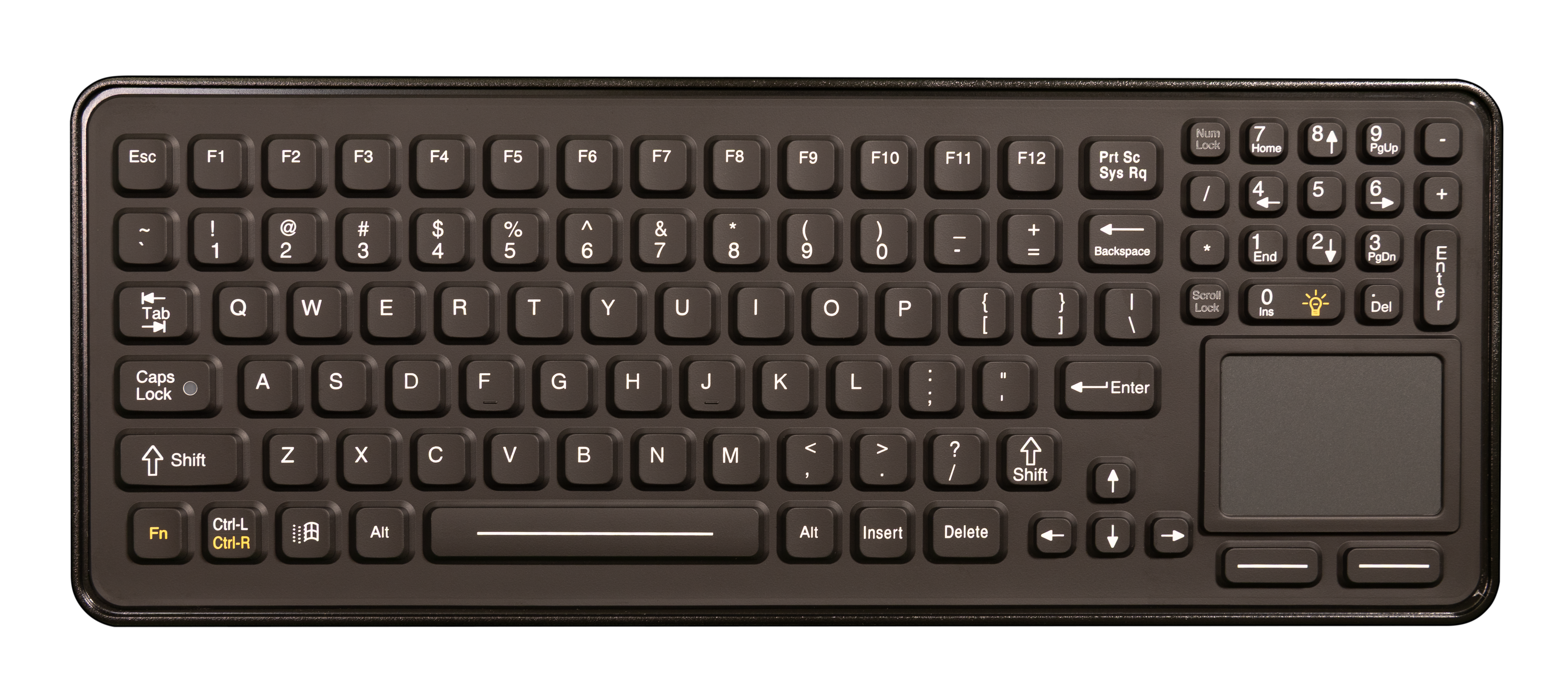

iKey’s SlimKey™ PM-97-TP panel mount keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated Touch Pad. When properly installed, the SlimKey™ PM-97-TP is engineered for NEMA 4X protection against dust, water and corrosive liquids. It is designed for easy integration into workstations, kiosks and industrial environments.
Adding product to your cart
Model Numbers:
PM-97-TP-PS2: With PS/2 cable PM-97-TP-USB: With USB cable
Dimensions:
15.10" x 6.05" x 1.09" (w-h-d) 383.5mm x 153.7mm x 27.7mm
Weight:
1.50 lbs +/-0.10 lbs (0.68 kg +/-0.05kg)
NEMA 4X, CE UL 60950, FCC Part 15 Class B
3x11 ns pulses of 50g on each of 3 axis
MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
POWER SPECTRAL DENSITY: .04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
PS2: KEYBOARD: 210mA@5V (from Keyboard port) POINTER: 35mA@5V (from Mouse port) USB: 245mA@5V (from CPU port)
STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
